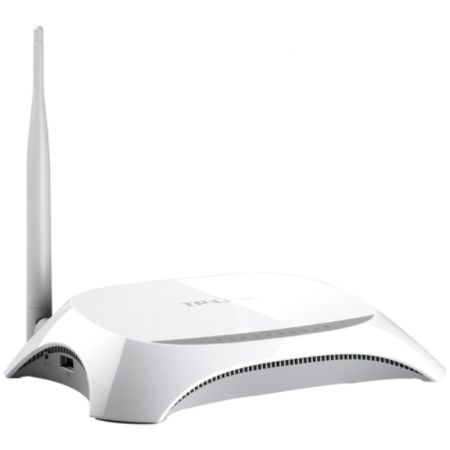

TP-LINK Wireless Router Item # 167962
Share
-
Email This Page
- Note: You can share Individual Items, entire Shopping Carts, and Shopping Lists.
-
Share this Item
Close
Print
167962
was removed.
Thank you, you will now be redirected to comparisons.
Just a moment while we prepare the page
Check In-Store Availability
Description
TP-Link's TL-MR3220 3G/3.75G Wireless Lite N Router allows you to quickly set up a 150Mbps wireless network on-the-go and share a 3G/3.75G mobile connection. By connecting a UMTS/HSPA/EVDO USB card to the router, a Wi-Fi hotspot is instantly established allowing users to share an Internet connection anywhere 3G/3.75G coverage is available. So whether you're on the train, camping, or at a construction site, you'll have a reliable wireless connection to accommodate your networking needs.
Product Details
| Item # | 167962 |
| OfficeMax # | 23626854 |
| Manufacturer # | GE8020 |
| Ethernet Technology | Fast Ethernet |
| power source | AC Adapter |
| Wireless Transmission Speed | 150 Mbit/s |
| height | 1.2 in |
| System Requirements | Operating Systems: Windows 98SE; Windows NT; Windows 2000; Windows XP; Windows Vista; Windows 7; Mac OS; NetWare; UNIX; Linux |
| Number of Network (RJ-45) Ports | 4 |
| Certifications & Standards | FCC; CE |
| antenna type | Omni-directional |
| width | 6.9 in |
| package contents | 3G/4G Wireless N Router TL-MR3220; 1 Antenna; Power supply unit; Ethernet Cable; Resource CD; Quick Installation Guide |
| Security Features | SPI Firewall; Domain Name filtering; MAC Address Filtering; PPPoE; PPTP; L2TP; VPN Pass-Through; DMZ |
| security/encryption | WEP; WPA; WPA2; WPA-PSK; WPA2-PSK |
| depth | 4.4 in |
| Broadband Transmission Technology | Ethernet |
| Product Name | 3G/4G Wireless N Router TL-MR3220 |
| Total Number of Antennas | 1 |
| Antenna Gain | 3 dBi |
| manufacturer | TP-LINK Technologies Co., Ltd |
| Antenna Connector | RP-SMA Connector |
| brand name | TP-LINK |
| Wireless LAN Standard | IEEE 802.11n |
| USB | Yes |
| UNII Band | No |
| Input Voltage | 9 V DC |
| Number of Broadband (RJ-45) Ports | 1 |
| Management Port | Yes |
| ISM Maximum Frequency | 2.48 GHz |
| ISM Band | Yes |
| form factor | Desktop |
| ISM Minimum Frequency | 2.40 GHz |
| model name | TL-MR3220 |
| Fast Ethernet Port | Yes |
| Show More ▾ |
Customer Reviews
From the Manufacturer|
Overview
-
What This Product Does
Set up a wireless-N network on the go to share a 3G/4G mobile connection with the TL-MR3220 3G/4G Wireless Lite N Router. Just connect a UMTS/HSPA/EVDO USB card to the router and you'll instantly have a Wi-Fi hotspot with wireless speeds up to 150 Mbps anywhere you have 3G/4G coverage. And with 3G/WAN failover capability, you won't have to worry about losing your network connection in the middle of work.
-
Quick and Easy Wi-Fi Hotspot Anywhere
Simply plug a 3G/4G USB modem into a USB 2.0 port, and the router will automatically set up a Wi-Fi hotspot anywhere you have 3G/4G coverage, whether you're on a train, on vacation in a different town, or out working on-site. The TL-MR3220 works with UMTS/HSPA/EVDO USB modems and has been tested in the field so you can work with confidence.
-
Wireless-N Router for Fast, Reliable Connection
The TL-MR3220 is a wireless-N router, and provides all the capabilities of a full-featured high-speed router with speeds up to 150 Mbps. It is compatible with 802.11n/g/b wireless networks and operates on the 2.4GHz frequency.
You'll have a reliable connection with great range thanks to SST technology which offers a robust, stable wireless connection, and CCA technology, which automatically avoids channel conflicts. Two detachable antennas are designed to provide optimal transmission rates and coverage.
The router can also be configured as a WDS wireless bridge to seamlessly expand your wireless network, and it has four 10/100 Mbps Ethernet ports for wired connections.
-
Failover Capability Guarantees a Stable Connection
The TL-MR3220 lets you connect both a WAN (cable or DSL) connection and a 3G/4G Internet connection. If service is interrupted to the designated primary connection, the router will automatically switch to the secondary connection, and once service in the primary connection is restored, the router switches back. With this failover capability, you won't have to worry about losing a connection when you need it most.
-
QSS for Instant Wireless Security Encryption
Setting up your network security is a cinch. Just press the QSS (Quick Secure Setup) button on the router to automatically establish a secure WPA2 connection.
The device also supports SPI firewalls and access control management for safer use.
-
Set Different Bandwidth Limits for Users
IP-based bandwidth control lets administrators determine how much bandwidth they want to allot each user. Since mobile Internet connections can vary in pricing, bandwidth control helps control costs if necessary.
-
Detachable Antenna for Adjustability and Upgrades
The router includes an omnidirectional antenna that can be quickly adjusted and rotated to different positions for flexibility and better performance than internal antennas. The antenna is detachable, so if you need greater performance you can easily replace it with a stronger antenna for even better coverage.
-
Powerful Parental Controls for Safe Browsing
Integrated parental control functions allow for precise control over children's Internet activities, including restricting certain websites and limiting the amount of time spent on the Internet. The simple web-based interface makes setting schedules and adding new computers a quick and easy process.
See More:
Product Views
Features
- Compatible with UMTS/HSPA/EVDO USB modems, tested in the field
- 3G/WAN failover guarantees an "always-online" Internet connection
- Wireless N speed up to 150Mbps
- Supports PPPoE, Dynamic IP, Static IP, PPTP, L2TP Cable Internet access
- SST technology dramatically increases link robustness and stability
- CCA technology enhances your signal stablility by automatically avoiding channel conflicts
- Wireless security encryption is so easy at just one push of the QSS button (WPS Compatible)
- WDS wireless bridge provides seamless bridging between routers to expand your wireless network
- IP based bandwidth control allows administrators to determine how much bandwidth is allotted to each PC
Package Contents
- 3G/4G Wireless N Router
- 1 Antenna
- Power supply unit
- Ethernet Cable
- Resource CD
- Quick Installation Guide
Datasheet
-
TL-MR3220 Datasheet
TL-MR3220 Datasheet - opens PDF
PDF, 866K, 2 pages
Compatibility
-
Compatibility List
http://www.tp-link.com/common/subject/3g-router/compatible/list/default.aspx
Warranty
- 2-Year Warranty
